CT-Dryer Cylinder-2023
SDI has been committed to provide the best drying solution for paper customers.

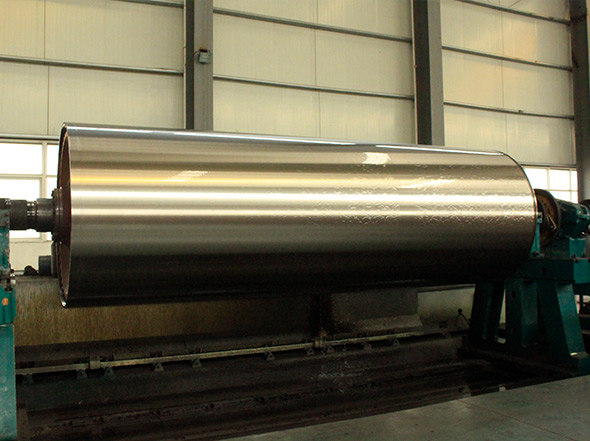

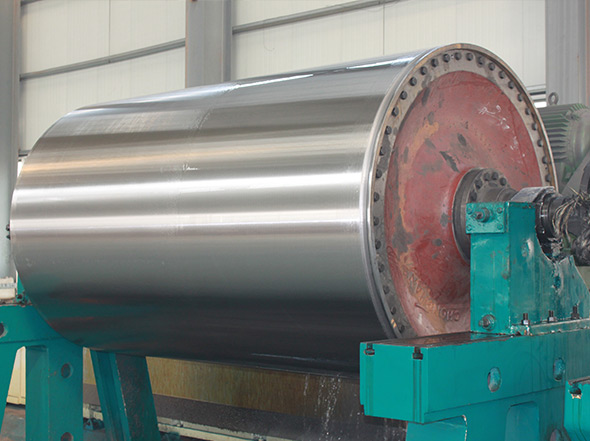

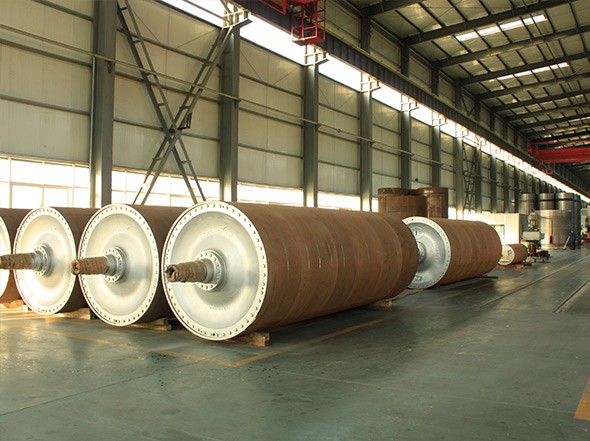

The dryer cylinder for paper machine is the key component of paper drying - Class I pressure vessel. As one of the biggest manufacturers of cast iron dryer cylinder in China, SDI have the qualification to provide new dryers and maintenance services for the paper-making customers, which adopts the international and advanced resin sand molding and the medium-frequency electric furnace smelting method. SDI can normally provide the dryer cylinder φ1500, φ1524,φ 1800,φ1830 with face length within 10m and working pressure 0.8Mpa, and working speed 1500m/min meeting ASME international standards to the paper industry customers.
Product Description
SDI has been committed to provide the best drying solution for paper customers.
The dryer cylinder for paper machine is the key component of paper drying - Class I pressure vessel. As one of the biggest manufacturers of cast iron dryer cylinder in China, SDI have the qualification to provide new dryers and maintenance services for the paper-making customers, which adopts the international and advanced resin sand molding and the medium-frequency electric furnace smelting method. SDI can normally provide the dryer cylinder φ1500, φ1524,φ 1800,φ1830 with face length within 10m and working pressure 0.8Mpa, and working speed 1500m/min meeting ASME international standards to the paper industry customers.
Main Technical Specification
|
Dryer Diameter |
φ1500,φ1800,φ1830 |
|
Dryer Shell Length |
3000mm~10000mm |
|
Shell Material |
Cast Iron HT300 |
|
Head Material |
Cast Iron HT300 |
|
Working Pressure |
0.5Mpa(5bar) ~0.8Mpa(8bar) |
|
Test Pressure |
1.0Mpa(10bar) ~1.6Mpa(816bar) |
|
Working Speed |
300m/min~1500m/min |
|
Dynamic Balance |
300m/min~1500m/min |
