CT-Yankee Dryer-2023
SDI has been committed to provide the best drying solution for paper customers.

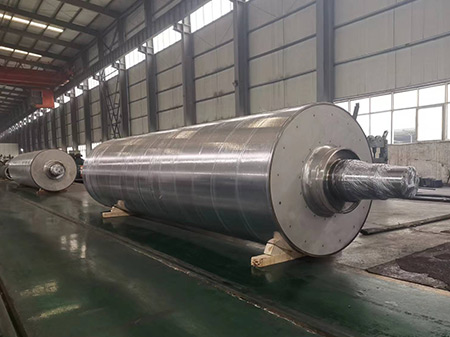

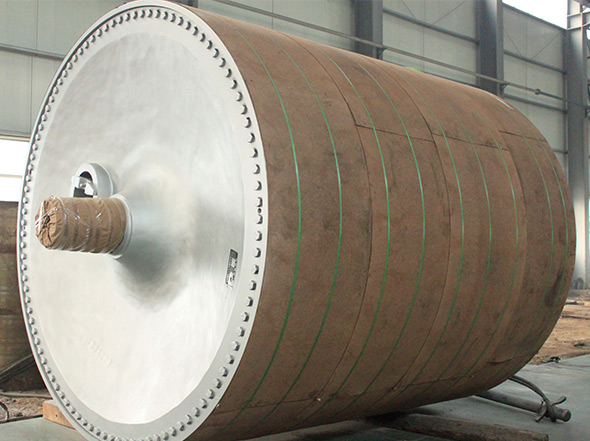

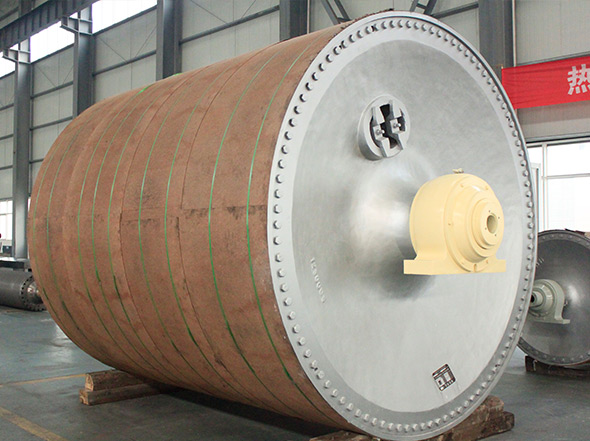

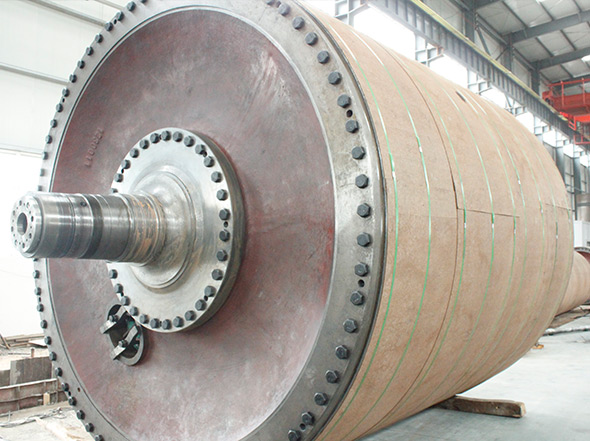

The YANKEE Dryer Cylinder for TISSUE Paper or special paper machine is the key component of paper drying - Class I pressure vessel. As one of the biggest manufacturers of cast iron YANKEE Dryer Cylinder in China, SDI have the qualification to provide new dryers and maintenance services for the paper-making customers, which adopts the international and advanced resin sand molding and the medium-frequency electric furnace smelting method. SDI can normally provide the YANKEE Dryer Cylinder φ2500,φ3000, φ3660with face length within 5m and working pressure 0.8Mpa, and working speed 1500m/min meeting ASME international standards to the paper industry customers.
Product Description
SDI has been committed to provide the best drying solution for paper customers.
The YANKEE Dryer Cylinder for TISSUE Paper or special paper machine is the key component of paper drying - Class I pressure vessel. As one of the biggest manufacturers of cast iron YANKEE Dryer Cylinder in China, SDI have the qualification to provide new dryers and maintenance services for the paper-making customers, which adopts the international and advanced resin sand molding and the medium-frequency electric furnace smelting method. SDI can normally provide the YANKEE Dryer Cylinder φ2500,φ3000, φ3660with face length within 5m and working pressure 0.8Mpa, and working speed 1500m/min meeting ASME international standards to the paper industry customers.
Main Technical Specification
|
Dryer Diameter |
φ2500,φ3000,φ3660 |
|
Dryer Shell Length |
2000mm~5000mm |
|
Shell Material |
Cast Iron HT300 |
|
Head Material |
Cast Iron HT300 |
|
Working Pressure |
0.5Mpa(5bar) ~0.8Mpa(8bar) |
|
Test Pressure |
1.0Mpa(10bar) ~1.6Mpa(816bar) |
|
Working Speed |
300m/min~1500m/min |
|
Dynamic Balance |
300m/min~1500m/min |
