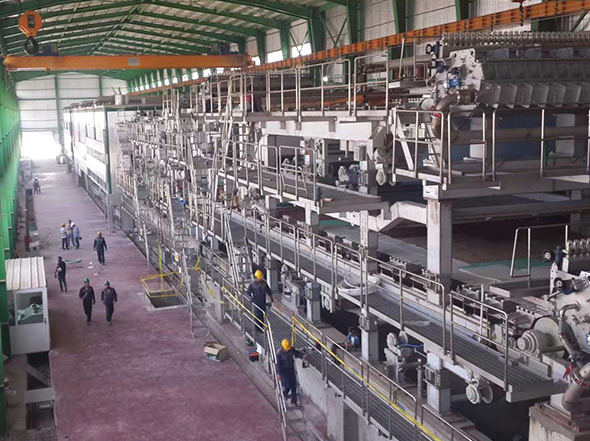

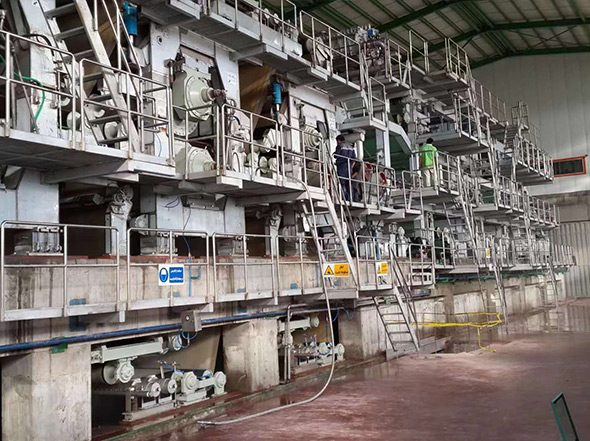

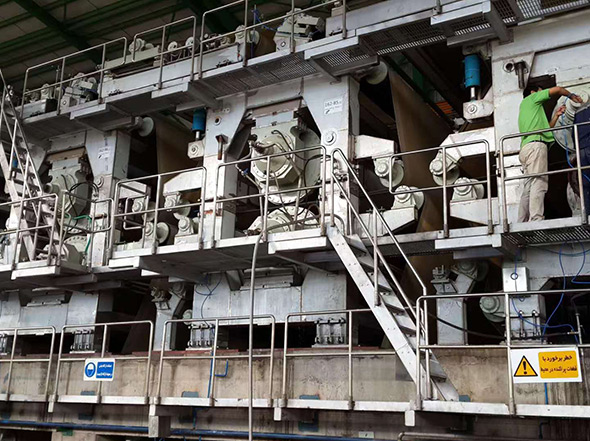

CT4400-350TPD Kraft Liner Paper Machine
CT4400-350TPD Kraft Liner Paper Machine
Product Description
Main Parameters For Kraft Liner Paper Project
|
NO |
MAIN NAME |
MAIN DATA |
|
1 |
PAPER GRADE |
Kraft liner, Testliner, Fluting Paper |
|
2 |
TRIM WIDTH |
4400mm |
|
3 |
GRAM RANGE |
90-200gsm |
|
4 |
BASIS WEIGHT |
125gsm |
|
5 |
DESIGN SPEED |
500m/min |
|
6 |
WORKING SPEED |
450m/min |
|
7 |
DAY CAPACITY |
350T/D |
|
8 |
ARRANGE TYPE |
One-floor |
Turnkey Services For Kraft Liner Paper Project
|
NO |
MAIN SYSTEM |
REMARKS |
|
1 |
GENERAL DESIGN |
INCLUDED |
|
2 |
STOCK PREPARATION |
INCLUDED |
|
3 |
APPROACH SYSTEM |
INCLUDED |
|
4 |
PAPER MACHINE |
INCLUDED |
|
5 |
BROKED PAPER SYSTEM |
INCLUDED |
|
6 |
FRESH&WHITE WATER SYSTEM |
INCLUDED |
|
7 |
VACUUM SYSTEM |
INCLUDED |
|
8 |
STEAM CONDENSATE SYSTEM |
INCLUDED |
|
9 |
DCS&QCS |
INCLUDED |
|
10 |
COMPRESSED AIR SYSTEM |
INCLUDED |
|
11 |
SIZE COOKING SYSTEM |
INCLUDED |
|
12 |
PIPINGS&VALVES |
INCLUDED |
|
13 |
WATER TREATMENT |
INCLUDED |
|
14 |
BOILERS |
INCLUDED |
|
15 |
MCS FOR PAPER MACHINE |
INCLUDED |
|
16 |
ALL CABLES LINES |
INCLUDED |
|
17 |
MCC SYSTEM |
INCLUDED |
|
18 |
CRANES FOR WORKSHOP |
INCLUDED |
|
19 |
CIVIL WORKS |
EXCLUDED |
Main Techincal Specification For Kraft Liner Project
|
NO |
MAIN PART |
SPECIFICATION |
|
1 |
HEADBOX |
Air-Cushioned, Lip width:4750mm |
|
2 |
WIRE SECTION |
3-Layers：7m+11m+29m |
|
3 |
PRESS SECTION |
φ1000/φ1000+φ1500/φ1500+φ1500/φ1500 |
|
4 |
DRYING SECTION |
44*φ1800 dryers+6*VAC-Rolls |
|
5 |
SIZER |
φ1250/φ1250 |
|
6 |
CALENDER |
φ900/φ900 |
|
7 |
POPE REEL |
Including 10 pcs of reel spools |
|
8 |
REWINDER |
Working speed: 1500m/min |
|
9 |
DRIVE SECTION |
ABB880 frequency converter |
